Project Page: Snore Tester Prototype

Homepage Overview

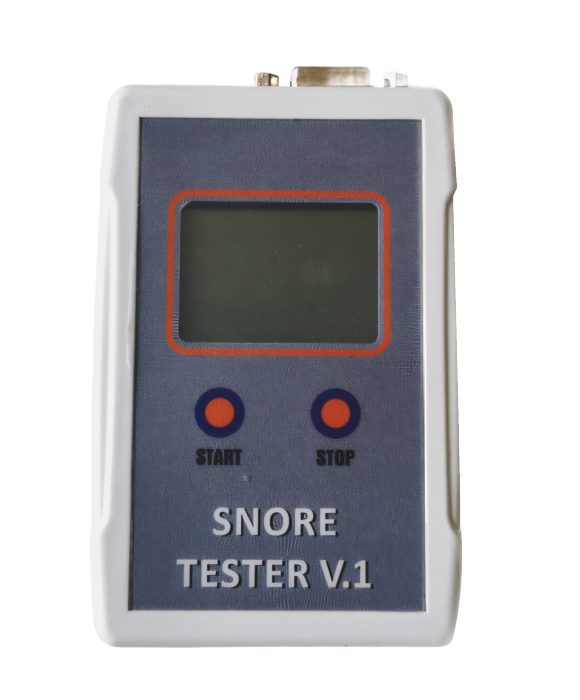

Snore Tester is an innovative medical device developed under the TUBITAK 1512 Program (Grant No: 2120025). Designed to advance sleep disorder diagnostics, it wirelessly captures and visualizes critical physiological parameters—body temperature, SpO2, pulse rate, and PPG waveforms—in real time. Its primary application lies in detecting sleep apnea, though its versatile design supports broader sleep study and health monitoring applications.

About the Project

The Snore Tester prototype is a non-invasive, patient-friendly solution for continuous physiological monitoring. By leveraging wireless technology and real-time data analytics, it empowers clinicians and researchers to identify sleep apnea patterns efficiently while enabling long-term data storage for retrospective analysis.

Key Features

Müşterilerimizin güvenlik ihtiyaçlarını analiz ederek, onlara özel ve etkili çözümler üretiyoruz. Yılların deneyimi ve teknolojik yenilikleri birleştirerek, en güvenilir ürün ve hizmetleri sunmayı amaçlıyoruz. Kamera sistemleri, Pratik Kart, Pratik Plus, Diafon, Alarm Sistemleri, Kapı Kilit Sistemleri, Yangın Sistemleri ve Güneş Enerji Sistemleri gibi geniş bir hizmet yelpazesiyle, her türlü ihtiyaca cevap veriyoruz. Projelerin her aşamasında müşterilerimize profesyonel destek sunarak, sorunsuz bir deneyim yaşatmayı hedefliyoruz. Yaşam alanlarının güvenliğini sağlayarak, toplumun yaşam kalitesini yükseltmek için çalışıyoruz.

ALKA GÜVENLİK olarak, vizyon ve misyonumuz doğrultusunda, güvenliğinizi sağlamak ve yaşam alanlarınızı korumak için her zaman yanınızdayız. Siz de güvenilir ve profesyonel çözümler için bizi tercih edin!

Multi-Parameter Monitoring : Simultaneously measures:

Body Temperature (°C)
Blood Oxygen Saturation (SpO2) (%)
Pulse Rate (BPM)
PPG (Photoplethysmography) Waveforms

Wireless Data Transmission : Utilizes Bluetooth 5.0 for seamless, low-latency connectivity (range: up to 10 meters).

Real-Time Visualization : Streams data to a cross-platform desktop application with dynamic graphs and alerts.

Apnea Detection Algorithm : Analyzes PPG and SpO2 trends to flag apnea events using signal processing and machine learning techniques.

Data Export : Stores recordings in CSV/Excel formats for integration with third-party tools (e.g., MATLAB, Python).

Technical Specifications

Parameter

Sensors

Medical-grade sensors (e.g., MAX30102 for SpO2/PPG, MLX90614 for temperature).

SpO2 Range

70–99% (±2% accuracy).

Temperature Range

0–50°C (±0.2°C accuracy).

Sampling Rate

PPG: 100 Hz; Temperature: 1Hz.

Battery Life

Rechargeable Li-ion battery (8+ hours continuous use).

Compatibility

Windows/macOS/Linux via dedicated software (Python backend).

Data Security

AES-128 encryption for secure transmission and storage.

Applications

Sleep Apnea Diagnosis: Identifies apnea/hypopnea events through SpO2 dips and pulse variability.
Home Sleep Monitoring: Enables patients to track vital signs overnight without clinical supervision.
Research & Telehealth: Facilitates large-scale sleep studies and remote patient monitoring.
Postoperative Care: Monitors oxygenation and pulse stability in recovery phases.

Software Interface

The Snore Tester Desktop App provides :

Real-time dashboards for each parameter.
Customizable thresholds for anomaly detection (e.g., SpO2

Support & Compliance

Developed in compliance with ISO 13485 (medical device standards).
Acknowledgments: Funded by TUBITAK 1512 Program Grant 2120025.

Contact & Collaboration

Interested in partnerships or clinical trials? Reach out to:
Email : info@lhelektronik.com
